Applicators
Efficient. Precise. Future-proof.
Sleeve applicators from BERNING
Whether Labelings, initial decoration or Tamper-evident closures – BERNING produces sleeve applicators that combine the highest precision with maximum flexibility. Each machine is designed to process sleeves in a dimensionally stable manner, open them cleanly, position them precisely and apply them reliably – regardless of whether they are bottles, jars, pouches, cans or complex molded parts.
Our systems cover a broad spectrum: from compact machines for moderate speeds to high-performance systems with individual configurations. Thanks to their modular design, intelligent Control technologies and sophisticated peripherals, all machines can be precisely adapted to your line and your products.
In short: BERNING supplies sleeve applicators that simplify processes, make brands visible and ensure product protection.
BS-200
Facts:
Application:
Technical data:
Product diameter / diagonal
15-100 mm
Product height
10-370 mm
Performance / output
80 T/min
Roller diameter inside
5-6 inch
Roller diameter outside
450 mm
Sleeve width / flat belt width
160 mm
Tape width
10-320 mm
Belt height
> 850 mm
For high process reliability in the medium-power range.

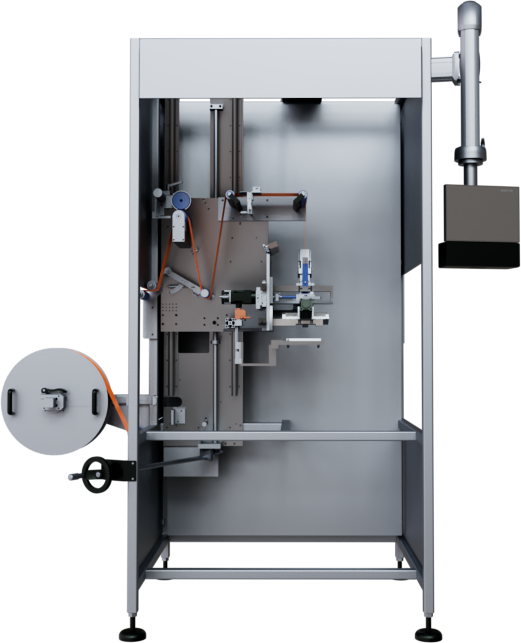

BS-400
Technical data:
Product diameter / diagonal
15-130 mm
Product height
10-370 mm
Performance / output
220 T/min
Roller diameter inside
5-10 inch
Roller diameter outside
550 mm
Sleeve width / flat belt width
205 mm
Tape width
10-320 mm
Length
1420 mm
Height
2250 mm
Belt height
> 850 mm
For maximum speed and precision.
BS-700
Technical data:
Product diameter / diagonal
42-210 mm
Product height
30-370 mm
Performance / output
550 T/min
Roller diameter inside
5-10 inch
Roller diameter outside
600 mm
Sleeve width / flat belt width
330 mm
Tape width
30-320 mm
Length
1200 mm
Width
1355 mm
Height
2970 mm
Belt height
> 850 mm
For demanding products with horizontal transportation.
BS-1000
Technical data:
Product diameter / diagonal
7-60 mm
Product height
50-370 mm
Performance / output
70 T/min
Roller diameter inside
5-10 inch
Roller diameter outside
550 mm
Sleeve width / flat belt width
100 mm
Tape width
50-320 mm
Length
1920 mm
Width
1600 mm
Height
2100 mm
Belt height
> 850 mm
Safe
Wrapped
Your benefits with Sleeves applicators from BERNING
Regardless of whether you are expanding an existing line, planning a new machine or looking for a customized solution: We support you from the initial idea through to ongoing production.
- Consulting with an eye for the big picture
Product, process, environment – we think about everything together - Tailor-made system integration
Machines that fit seamlessly into your line - Short paths, quick answers
Direct contact with your contacts - Modular technology
Solutions that grow with your requirements
Our satisfied customers
Your message to Berning
“A good Sleeve is more than just an attractive design. It has to work in the process. That’s exactly what we ensure.”
