Precise systems for high-performance Packaging lines:
Shrinking (process) tunnel for dishwasher tabs
Berning develops Shrink tunnels that are specially tailored to the requirements of modern Packaging lines, especially for dishwasher tabs in water-soluble tubular bags. Our modular systems impress with their precision, durability and high process speed. You always retain control of the temperature, air flow and cycle output – simply by touch panel.
Whether as a compact hot air tunnel or as an individually combinable modular system, our shrink technology fits seamlessly into your production line and always delivers precise shrink results, even at high output rates.
For the high-performance shrinking of dishwasher tabs.
Shrink tunnel for dishwasher tablets
Technical data:
Product diameter / diagonal
50 mm
Product height
20 mm
Performance / output
1500 T/min
Length
3500 mm
Width
1550 mm
Height
2550 mm
Belt height
> 900 mm
For counted product quantities in automated cartoning.
Cartoning and Separations
Technical data:
Product diameter / diagonal
All standard cartons
Product height
All standard cartons
Performance / output
1200 tabs/min,
60 cartons/min
Length
1500 mm
Width
2300 mm
Height
2600 mm
Belt height
> 1000 mm

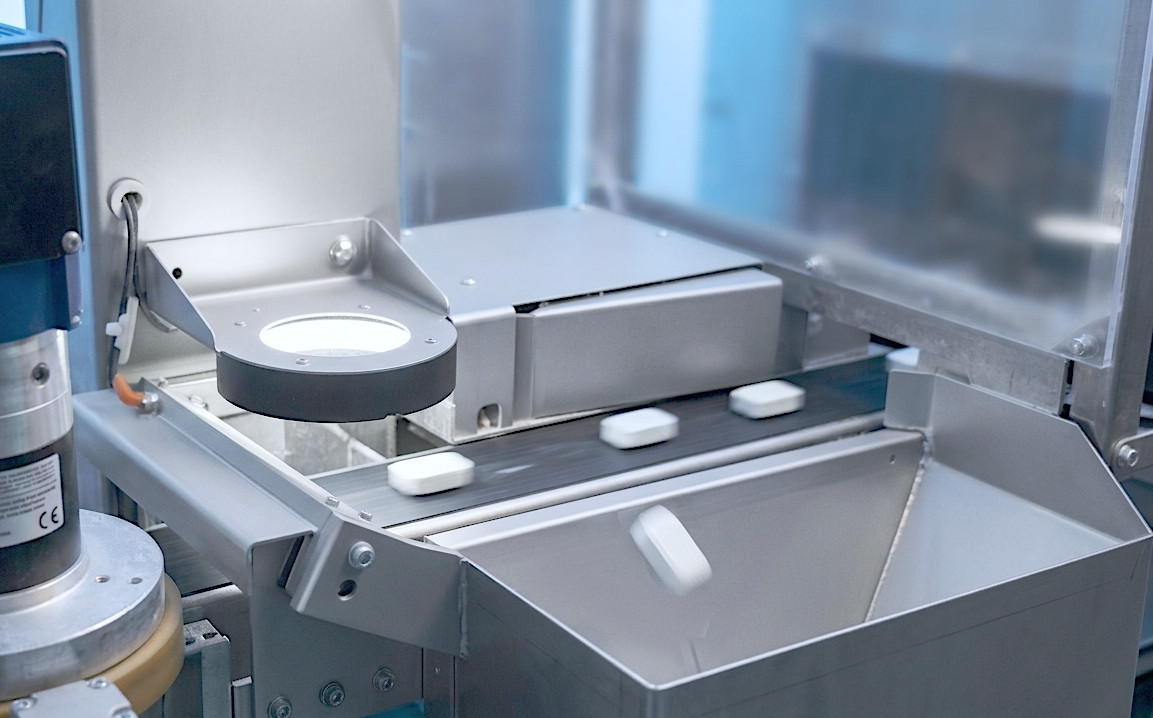

For the highest quality standards through precise sorting.
Committee control
Facts:
Area of application:
- Precise detection of the optimum Shrinking (process) result
- Reliable control of Sleeves presence on the product
- Continuous checking of the exact tabs dimensions
- Reliable check for tabs sticking together
Advantage:
Significant improvement in production quality.
Your advantages with Shrinking (process) tunnels from BERNING:
- Up to 1,500 tabs per minute
High cycle output for demanding packaging lines with large volumes - Energy-efficient
Insulated housing and an intelligent recirculation system reduce energy consumption by up to 25 % - Integrated camera and filter monitoring
Seamless quality control during the Shrink process for reliably flawless products - Intuitive operation via touch panel
Simple setting and storage of all relevant parameters such as temperature, supply air and belt speed - Maintenance-friendly design
Automatically lowerable nozzles, easily removable filters and easily accessible components make cleaning and servicing easier - Robust design with well thought-out details
High-quality materials, glass panes for process insight, heavy-duty castors and integrated control cabinets ensure durability and flexibility - Seamless integration into your line
Smooth connection of our Shrink tunnels to your existing flow-wrapping machine or Conveyor technologies
Are you looking for a shrink solution,
that is perfectly tailored to your product line?
Fast.
Top result.

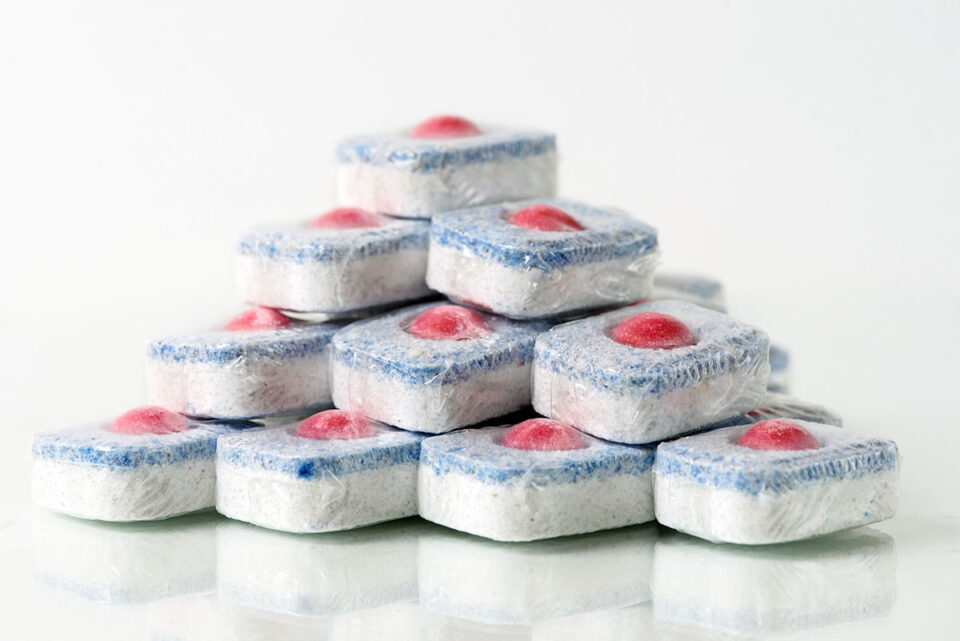

Tailor-made for water-soluble Films / Foils and tabs
Water-soluble Packaging places special demands on the Shrink processes: too much heat leads to deformation, too little heat leads to unstable end products. The BERNING Shrink tunnel offers a precisely controllable combination of temperature, air flow and transport speed. This ensures that the Film / Foil is shrunk to fit the tabs precisely – at up to 1,500 pieces per minute.
Thanks to the integrated quality control via camera and filter monitoring, even large batches can be produced reliably. The hot air nozzles automatically move to the working position when switched on and to a maintenance-friendly rest position when switched off.
Tab shrink tunnels from BERNING - we set standards in terms of high speed, efficiency and safety
With the specially developed shrink tunnel for dishwasher tablets, Berning presents a solution that is consistently designed for high performance and operational reliability. The system impresses with the following features:
- Seamless connection to flow-wrapping machines
- High-quality shrinking result by pressing on with guide belts
- Touch panel control for temperature, supply air and speed.
- Good view into the tunnel through large glass panes.
- Heavy-duty castors and integrated switch cabinets for easy positioning.
Optionally available:
Energy recovery with up to 25 % savings potential – ideal for energy-intensive processes.

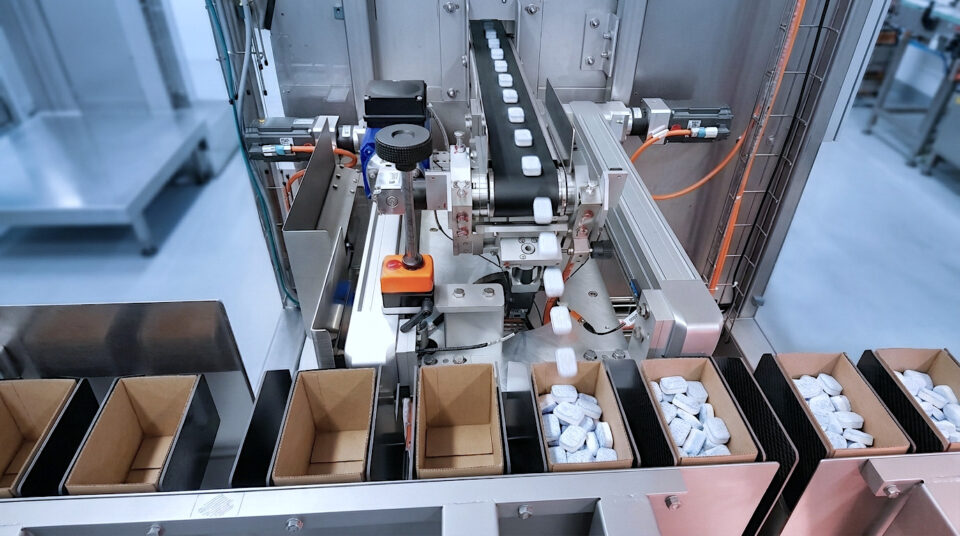

Ordered and precise: Cartoning and Separations
A Shrink tunnel can only develop its full potential if the upstream processes are precisely coordinated. Our cartoning and Separations solutions are the perfect complement. Here, the products packaged in tubular bags are automatically recognized, counted and placed in the cartons.
Quality in throughput: Scrap control
Whether incorrect dosing, defective Packagings or damaged units – our Shrink systems prevent rejects from going any further. An integrated reject check monitors the weight and visual condition of each carton after filling. Any discrepancies are automatically sorted out. This keeps your line productive and only perfect cartons are sent to the next station.
